| Model |

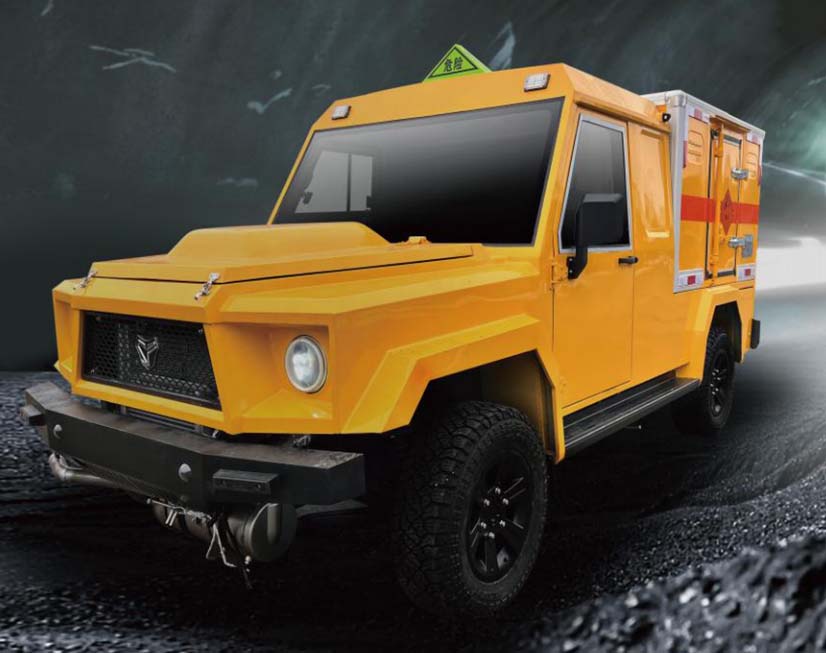

FCB-1.5 |
| Dimensions (L×W×H)(mm) |
4980±140×1980±80×2150±60 |
| Engine Model |
ZD30N15-4D1 |
| Rating power(KW) |
110kW |
| Maximum output torque(N·m) |
470 |
| Clutch |
/ |
| Gearbox |
AT (Automatic Transmission) |
| Service brake |
Four-wheel brake, hydraulic brake, wet brake |
| Parking brake |
Fail-safe wet brake |
| Emergency braking |
Fail-safe wet brake |
| Drive form |
4×4 time-shared four-wheel drive |
| Vehicle structure type |
Shaggy |
| Rated load weight(Kg) |
/ |
| Rated capacity |
2 |
| Wheelbase(mm) |
3000±90 |
| Wheelbase specifications(front/rear) |
1810±50/1710±50 |
| Maximum unloading height(mm) |
/ |
| Minimum Ground Clearance(mm) |
220±20 |
| Maximum gradeability(%) |
≥ 25 |
