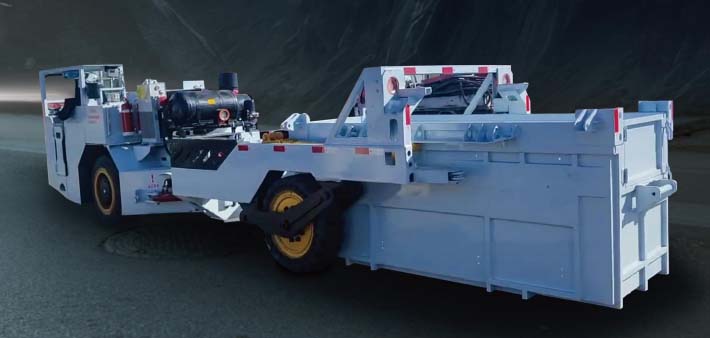

| Model |
WCJ5CE |
| Dimensions (L×W×H)(mm) |
(6850±230)×(1970±60)×(2000±60) |
| Engine Model |
KC6102DZLQFB |
| Rated power(KW) |
130 |
| Maximum output torque(N·m) |
/ |
| Clutch |
/ |
| Gearbox |
/ |
| Service brake |
2-Wheel Brake, Hydraulic Brake, Spring Release, Wet Brake |
| Parking brake |
Spring-loaded, hydraulically released, wet central brake for gearbox |
| Emergency braking |
Spring-loaded, hydraulically released, wet central brake for gearbox |
| Drive form |
Front wheel drive |
| Vehicle structure type |
/ |
| Rated capacity (m³) |
/ |
| Wheelbase(mm) |
3700±110 |
| Wheel base (front/rear)(mm) |
1500±40/1675±40 front/rear |
| Minimum ground clearance(mm) |
200±20 |
| Maximum gradeability(%) |
≥25(14°) |
| Braking distance on flat road (Dry hard cement floor) |
≤ 8m(At an initial speed of 20 km/h) |
