| Model |

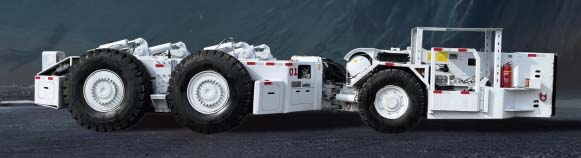

WC50Y |
| Dimensions (L×W×H)(mm) |
(9700±290)×(3540±105)×(1900±55) |
| Engine Model |
KC4107DZLOFB(A) |
| Rated power(KW) |
260 |
| Maximum output torque(N·m) |
1350 |
| Clutch |
/ |
| Gearbox |
/ |
| Transmission form |
Hydraulic drive |
| Service brake |
Six-wheel brake, spring brake, hydraulic release, wet brake |
| Parking brake |
Fail-safe wet brake |
| Emergency braking |
Fail-safe wet brake |
| Drive form |
6X6 time-shared six-wheel drive (switchable between 2 and 6WD) |
| Vehicle structure type |
Front and rear comparative bodywork |
| Rated capacity (m³) |
/ |
| Rated load weight(Kg) |
50000 |
| Wheelbase(mm) |
3170+1860 |
| Wheelbase (front/middle/rear) |
14.00-20/16.00-25(front/middle/rear) |
| Minimum Ground Clearance(mm) |
/ |
| Maximum gradeability(%) |
≥25(14°) |
