SAIFU WC5QJ

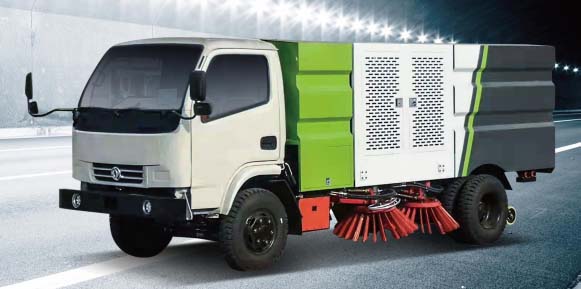

WC5QJ - SAIFU WC5QJ - Special Purpose Vehicle WC5QJ

Model	WC5QJ
Dimensions (L×W×H)(mm)	(6200±180)×(1950±95)×(2300±70)
Engine Model	KC6102DZLDFB(A)
Rated power(KW)	120
Maximum output torque(N·m)	479
Clutch	Diaphragm Spring Clutch
Gearbox	Mechanical gearbox
Service brake	Four-wheel braking, Hydraulic braking, Wet brake
Parking brake	Fail-safe wet brake
Emergency braking	Fail-safe wet brake
Drive form	4×2
Vehicle structure type	Flathead Split Body
Rated capacity (m³)	/
Wheelbase(mm)	3600
Wheel base (front/rear)(mm)	1640/1500 front/rear
Minimum ground clearance(mm)	165
Maximum gradeability(%)	≥ 25(14°)
