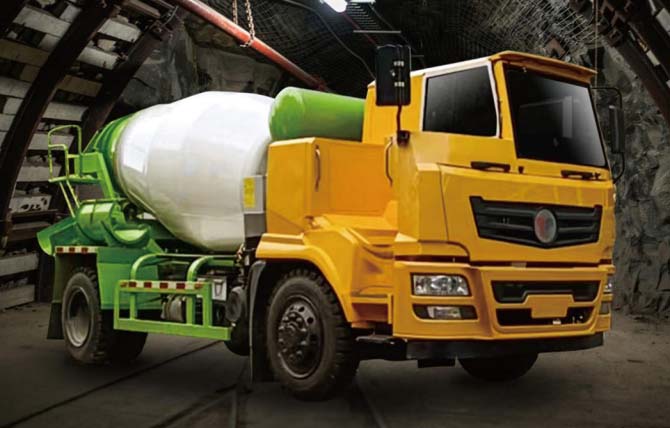

SAIFU KJC-3

KJC-3 - SAIFU KJC-3 - Special Purpose Vehicle KJC-3

Model	KJC-3
Dimensions (L×W×H)(mm)	6880×2420×2850
Engine Model	B5.9CS4 160C
Rating power(KW)	118KW
Maximum output torque(N·m)	700N·m
Clutch	/
Gearbox	8JS85T
Service brake	Four-wheel brake, hydraulic brake, wet brake
Parking brake	Fail-safe wet brake
Emergency braking	Fail-safe wet brake
Drive form	4x2
Vehicle structure type	One-piece
Rated load weight(Kg)	/
Rated capacity	/
Wheelbase(mm)	3650
Wheelbase specifications(front/rear)	1970/1850
Maximum unloading height(mm)	220
Minimum Ground Clearance(mm)	/
Maximum gradeability(%)	≥ 25(14° )
