| Model |

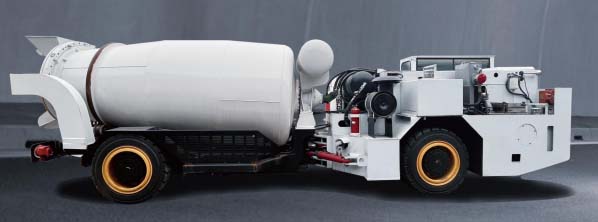

WCJ4BE |
| Dimensions (L×W×H)(mm) |
(7570±225)×(1995±55)×(2235±65) |
| Engine Model |
KC6102DZLQFB |
| Rated power(KW) |
120 |
| Maximum output torque(N·m) |
700 |
| Clutch |
Torque converter + gearbox |
| Gearbox |
/ |
| Transmission form |
/ |
| Service brake |
4-Wheel Brake, Hydraulic Brake, Spring Release, Wet Brake |
| Parking brake |
Spring brake, hydraulic release, wet central brake (gearbox) |
| Emergency braking |
Spring brake, hydraulically released, wet central brake (rear axle) |
| Drive form |
4X4 long-time four-wheel drive |
| Vehicle structure type |
Front and rear comparative bodywork |
| Rated capacity (m³) |
4 |
| Rated load weight(Kg) |
/ |
| Wheelbase(mm) |
4000 |
| Wheelbase (front/rear)(mm) |
1500/1500 front/rear |
| Minimum Ground Clearance(mm) |
200 |
| Maximum gradeability(%) |
≥25(14°) |
| Braking distance on flat road (Dry hard cement floor) |
≤8m(At an initial speed of 20 km/h) |
