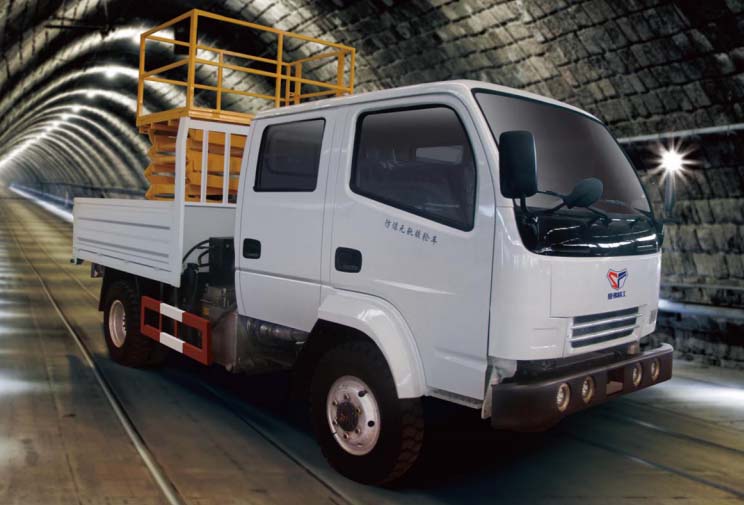

SAIFU WC3H(A)

WC3H(A) - SAIFU WC3H(A) - Special Purpose Vehicle WC3H(A)

Model	WC3H(A)
Dimensions (L×W×H)(mm)	(5800±100)×(2100±50)×(2630±50)
Engine Model	KC4107DZLQFB(A)
Rated power (Kw)	80
Maximum output torque(N·m)	380
Clutch	Diaphragm Spring Clutch
Gearbox	Mechanical gearbox
Service brake	Four-wheel braking, Hydraulic brake, Wet brake
Parking brake	Fail-safe wet brake
Emergency braking	Fail-safe wet brake
Drive form	4×2
Vehicle structure type	Flathead Split Body
Rated capacity (m³)	/
Wheel base(mm)	3300
Wheelbase front/rear (mm)	1620/1485
Minimum ground clearance(mm)	186
Maximum gradeability(%)	≥25(14°)
