| Model |

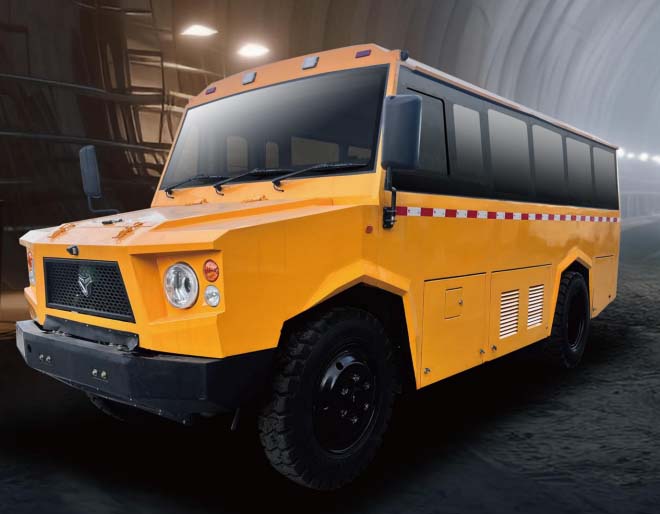

RU-20(B) |
| Dimensions (L×W×H)(mm) |
(6300±100)×(2220±50)×(2550±50) |
| Engine Model |
B3.9CS4 150C |
| Rated power(KW) |
110kw / 2500r/min |
| Maximum output torque(N·m) |
540N·m/1600rpm |
| Clutch |
Diaphragm Spring Clutch |
| Gearbox |
Automatic gearboxe |
| Service brake |
Four-wheel braking,Hydraulic brakin ,Wet brake |
| Parking brake |
Fail-safe wet brake |
| Emergency braking |
Fail-safe wet brake |
| Drive form |
4x2 |
| Vehicle structure type |
One-piece body |
| Rated passenger capacity |
20 persons |
| Wheelbase(mm) |
3540±30 |
| Wheelbase specifications |
1780±30/1680±30(front/rear) |
| Minimum ground clearance(mm) |
≥ 260 |
| Maximum gradeability(%) |
≥ 14(Applicable ramp -14~+14) |
| Braking distance on flat road (Dry hard cement floor) |
/ |
