| Model |

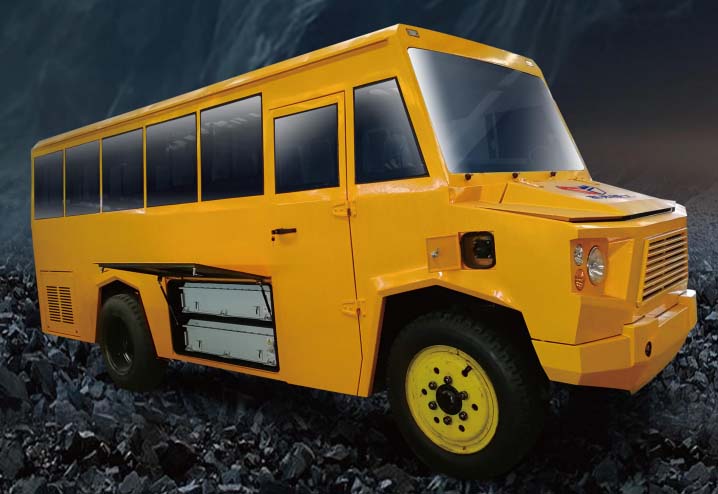

RU-20 |
| Dimensions (L×W×H)(mm) |
6200×1992×2500 |
| Drive motor type |
Permanent magnet synchronous motor |
| Rated Voltage VDC |
540 |
| Rated/peak power (KW) |
60/120 |
| Range Km |
130 |
| Cooling method |
Liquid-cooled, 50/50 mixture of water and glycol |
| Service brake |
Four-wheel brake, hydraulic brake, wet brake , The motor regenerate |
| Parking brake |
Fail-safe wet brake |
| Emergency braking |
Fail-safe wet brake |
| Drive form |
4×2 |
| Vehicle structure type |
Short head one-piece |
| Rated number of people |
20 |
| Wheelbase(mm) |
3090 |
| Tread (mm) |
1640/1470(front/rear) |
| Minimum ground clearance(mm) |
240 |
| Maximum gradeability(%) |
≥25 |
| Braking distance on flat road |
≤9M(At maximum speed) |
|
|
