| Model |

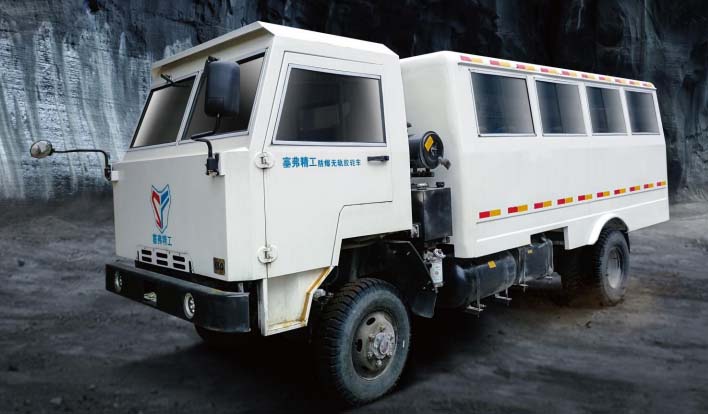

WC20R(E) |
| Dimensions (L×W×H)(mm) |
(6150±180)×(2020±60)×(2300±65) |
| Engine Model |
KC4107DZLQFB(A) |
| Rated power (KW) |
80 |
| Maximum output torque(N·m) |
380 |
| Clutch |
Diaphragm Spring Clutch |
| Gearbox |
Mechanical gearbox |
| Service brake |
Four-wheel braking, hydraulic brake, Wet brake |
| Parking brake |
Fail-safe wet brake |
| Emergency braking |
Fail-safe wet brake |
| Drive form |
4X4 time-shift four-wheel drive |
| Vehicle structure type |
Flathead Split Body |
| Rated capacity |
20 people |
| Wheelbase(mm) |
3300 |
| Wheelbase front/rear (mm) |
1660/1660 |
| Minimum ground clearance(mm) |
200 |
| Maximum gradeability(%) |
≥25(14°) |
|
|
