| Model |

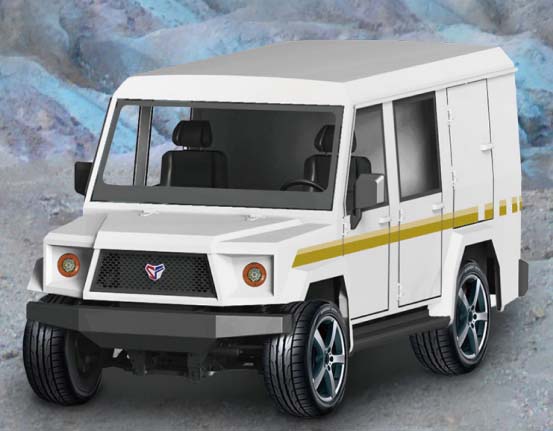

WLR-5 |
| length×width×height (mm) |
(4980±40)×(1950±19)×(2140±20) |
| Wheelbase (mm) |
3000 |
| Wheelbase front/rear (mm) |
1650/1675 |
| Front/Rear Suspension (mm) |
820/1160 |
| Ground clearance (mm) |
≥ 200 |
| Maximum total mass (kg) |
4900 |
| Total Vehicle Weight (kg) |
4500 |
| Rated passenger capacity (persons) |
5 |
| Maximum speed (km/h) |
≤ 25 |
| Axle load fully loaded front/rear (kg) |
2050/2850 |
| Minimum outside turning radius (m) |
≤ 7 |
| Maximum Climbing Gradient (°) |
14 |
| Motor type/model |
Mine explosion-proof permanent magnet synchronous variable frequency motor/TBVF1-90/12YC(380) |
| Location |
Center |
| Cooling method |
Liquid cooling |
| Power (rated/peak kw) |
60/120 |
| Torque (rated/peak N.m) |
350/700 |
| Speed (rated/peak rpm) |
1650/3400 |
| Electronic control type |
Integrated controller: MCU/PDU/DCDC/DCAC |
| Electronic control capacity (KVA) |
200 |
| Working voltage range |
DC250-355V |
| Vehicle control unit |
Explosionproof and intrinsically safe controller (including remote data transmission) |
| Power Battery |
320v,230Ah, 2 Included 73.6kwh |
| Battery Type |
Lithium Iron Phosphate |
| Charging time |
DC charging 1.5h (20%-100%) |
