| Model |

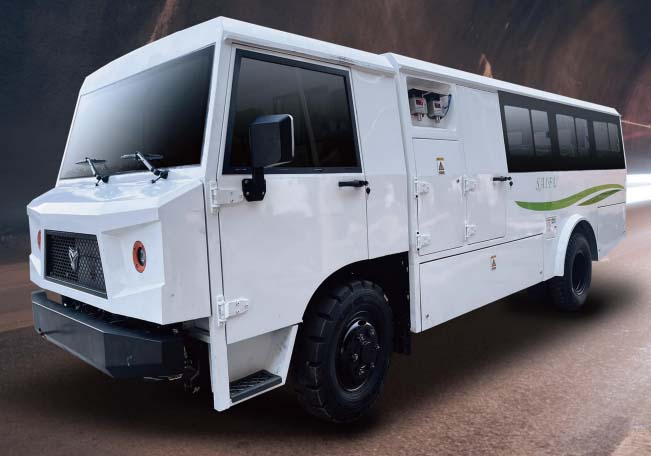

WLR-19(A) |
| Overall dimensions (length × width × height) (mm) |
(6250±60)×(1980±19)×(2195±20) |
| Engine Model |
Mining Flame-proof Permanent Magnet Synchronous Frequency |
| Rated/peak power (kW) |
90/150 |
| Rated/Peak Torque (N·m) |
350/700 |
| Accumulator form |
Explosion-proof lithium iron phosphate battery pack |
| Battery power (kW·h) |
117.7 |
| Charging time (h) |
＞2 |
| Travelling brake |
Four-wheel brakes, hydraulic brakes, wet brakes |
| Parking brake |
Fail-safe wet brakes |
| Emergency braking |
Fail-safe wet brakes |
| Drive type |
Rear drive |
| Vehicle structure type |
Flathead split cab |
| Rated number of persons |
19 people |
| Wheelbase (mm) |
3300 |
| Track (front/rear) (mm) |
1650/1550(front/rear) |
| Minimum Ground Clearance (mm) |
230 |
| Maximum Climbing Gradient |
≥25%(14°) |
| Braking distance on flat road (cold/hot) |
≤6m(cold state)/7.5m(hot state) |
| Emission standards |
Completely zero emissions |
