| Model |

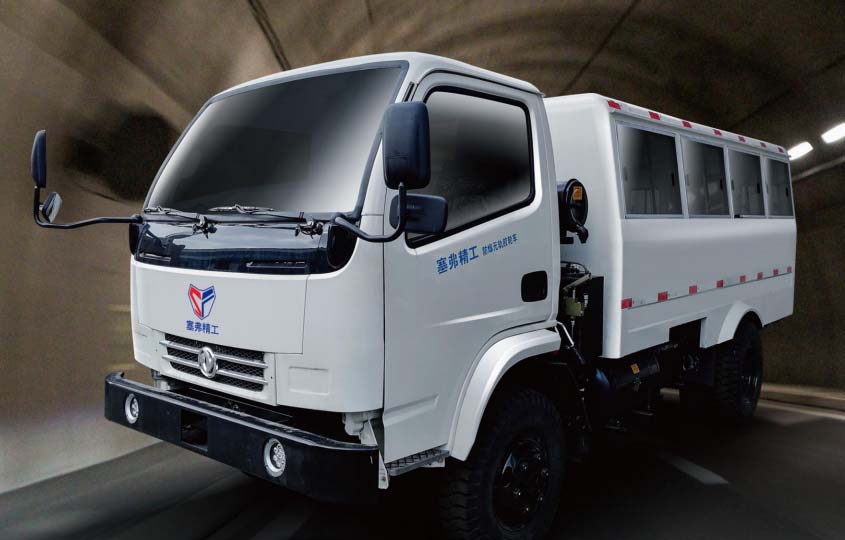

WC19R |
| Dimensions (L×W×H)(mm) |
(5860±170)×(2000±60)×(2230±60) |
| Engine Model |
KC4107DZL(D/Q)FB(A) |
| Rated power (Kw) |
80 |
| Maximum output torque(N·m) |
380 |
| Clutch |
Diaphragm Spring Clutch |
| Gearbox |
Mechanical gearbox |
| Service brake |
Four-wheel brakes, hydraulic brakes, wet brakes |
| Parking brake |
Fail-safe wet brakes |
| Emergency braking |
Fail-safe wet brakes |
| Drive form |
4×2 |
| Vehicle structure type |
Flathead Split Body |
| Rated capacity |
19 people |
| Wheel base(mm) |
3100 |
| Wheelbase front/rear (mm) |
1610/1600 |
| Minimum ground clearance(mm) |
190 |
| Maximum gradeability(%) |
≥25(14°) |
|
|
