| Model |

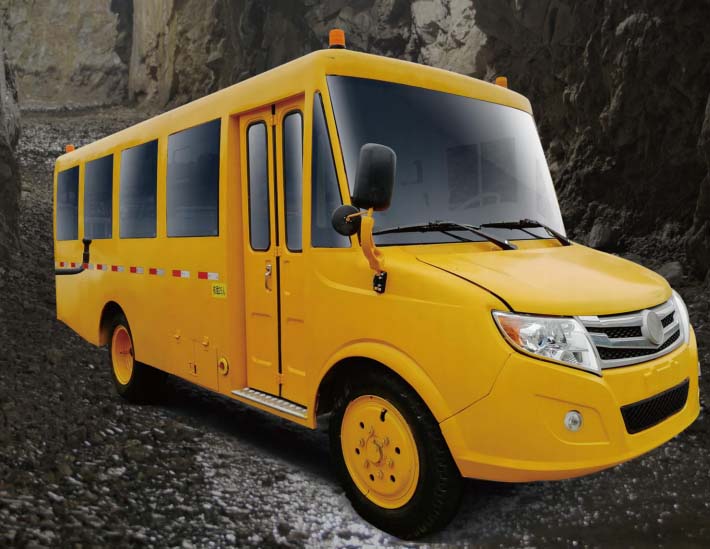

RU-25 |
| Dimensions (L×W×H)(mm) |
(6700±100)×(2250±50)×(2670±50) |
| Engine Model |
QSB4.5-C160-30 |
| Rated power(KW) |
119Kw/2200rpm |
| Maximum output torque(N·m) |
624N·m/1500rpm |
| Clutch |
Diaphragm Spring Clutch |
| Gearbox |
Mechanical gearbox |
| Service brake |
Four-wheel braking,Hydraulic brakin ,Wet brake |
| Parking brake |
Fail-safe wet brake |
| Emergency braking |
Fail-safe wet brake |
| Drive form |
4x2 |
| Vehicle structure type |
One-piece body |
| Rated passenger capacity |
25 persons |
| Wheelbase(mm) |
3650 |
| Wheelbase specifications |
1880/1650(front/rear) |
| Minimum ground clearance(mm) |
240 |
| Maximum gradeability(%) |
≥25(14°) |
|
|
