| Model |

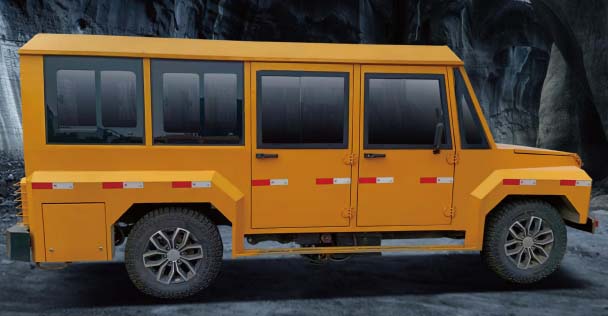

RU-5 |
| Dimensions (L×W×H)(mm) |
(5040±100)×(1900±50)×(2150±50) |
| Engine Model |
ZD30N15-3D1 |
| Rated power(KW) |
110 |
| Maximum output torque(N·m) |
400 |
| Clutch |
Diaphragm Spring Clutch |
| Gearbox |
6S |
| Service brake |
Four-wheel braking,Hydraulic brakin ,Wet brake |
| Parking brake |
Fail-safe wet brake |
| Emergency braking |
Fail-safe wet brake |
| Drive form |
4x4 time-shift four-wheel drive |
| Vehicle structure type |
Long head one-piece body |
| Rated passenger capacity |
5 persons |
| Wheelbase(mm) |
3090 |
| Wheelbase specifications |
1600/1600(front/rear) |
| Minimum ground clearance(mm) |
240 |
| Maximum gradeability(%) |
30%(16.7°) |
|
|
