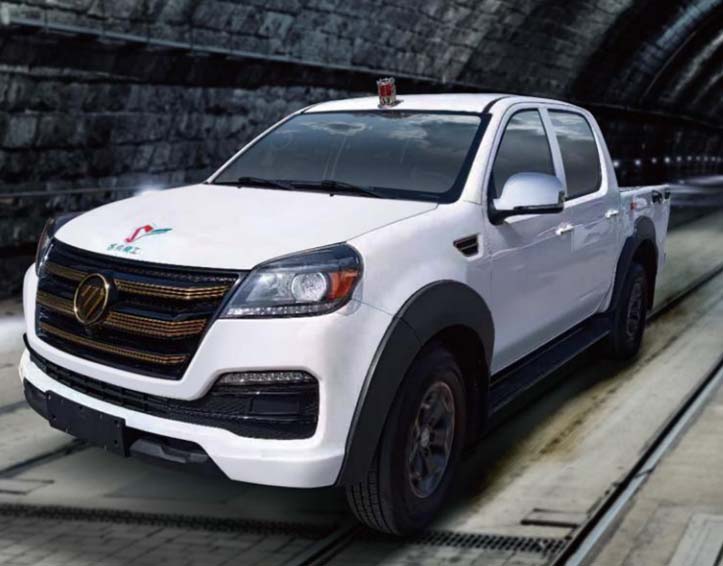

| Model |
WC5/0.5 |
| Dimensions (L×W×H)(mm) |
(5310±160)×(1880±55)×(1800±50) |
| Engine Model |
KC494DZLDFB |
| Rated power (KW) |
50 |
| Maximum output torque(N·m) |
225 |
| Clutch |
Diaphragm Spring Clutch |
| Gearbox |
6HP21 |
| Service brake |
Four-wheel brake, hydraulic brake, wet brake |
| Parking brake |
Rear axle travel-to-park integrated hydraulic brake |
| Emergency braking |
Rear axle travel-park hydraulic brake |
| Drive form |
4X4 time-shift four-wheel drive |
| Vehicle structure type |
Long head split body |
| Rated capacity |
Five people |
| Rated load capacity (kg) |
500 |
| Wheel base(mm) |
3105 |
| Wheelbase front/rear (mm) |
1600/1580 |
| Minimum ground clearance(mm) |
180 |
| Maximum gradeability(%) |
≥25(14°) |
